High Voltage Current Transformer Ratio Tester Primary Injection Test Set

I.Introduction

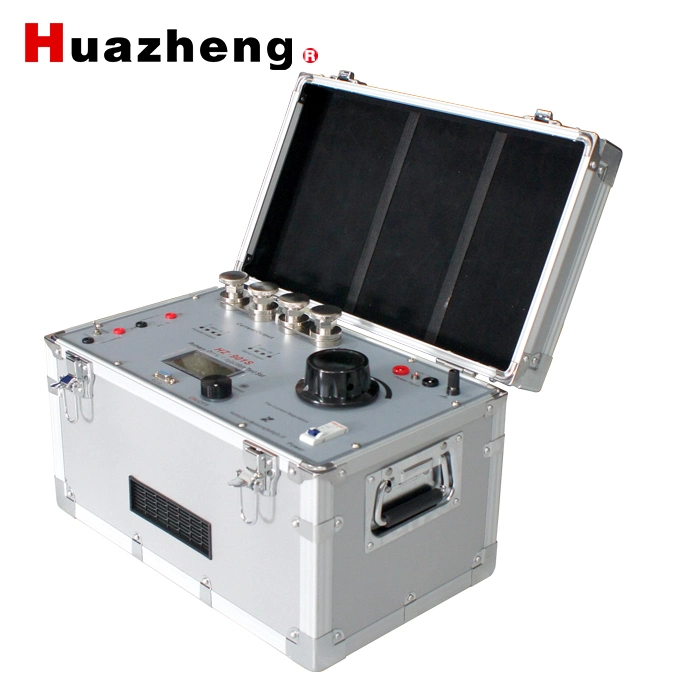

High Voltage Current Transformer Ratio Tester Primary Injection Test Set

primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

II.Parameters
1. Power Supply: AC: 220V± 10%· 25A, 50Hz/60Hz
2. Current Output: AC: 1000A· 5V or 500A· 10V, Capacity: 5KVA
3. The current output waveform distortion: ≤ 5%
4. Display, primary current, second current and turn ratio,
Accuracy: ± 0.5%,
Primary current range: 0~1100A, Resolution: 0.1A;
Measurement second current range: 0~6A, Resolution: 0.001A
Current Duration:
1000A range: 1000A 2~3minutes,
500A 3~6minutes
500A range: 500A 2~3minutes,
5. Dual protection (overload electronic protection and software protection)
6. Working environment: Temperature -10~40, relative humidity≤ 80%
7. Volume: 430mm× 260mm× 260mm
8. Weight: 29Kg
Portable Test System Huazheng Hz-901s Primary Current Injection Test Equipment

High Voltage Current Transformer Ratio Tester Primary Injection Test Set
Packing List
No.ItemQty
1Main engine1
2Test line2
3Power line1
4Double core sheathed wire2
5Ground lead1
6Small clip5
7Insert1
